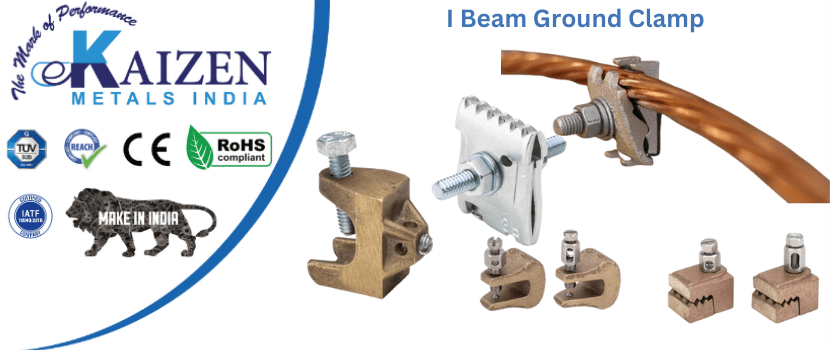

I Beam Ground Clamp
To associate establishing anode conveyor to underlying I Beam Ground Clamp or metal casing
Can likewise be utilized on wall posts, trailer outlines, link plate Series covers an extensive variety of pillar and wire sizes Disposes of penetrating underlying steel Replaces exothermic welding
Use to associate establishing cathode guide to aroused steel or anodized aluminum
I-bar, metal casing, link plate Screw enters I-bar surface paint or oxide for electrical contact
Kills boring underlying steel Aluminum body, tin-plated Tempered steel screws UL 467 listed,CU in particular
Features i beam ground clamp
• Used to provide an electrical connection to trailers, mobile homes or other beam structure
• Cup point on bolt penetrates through surface paint or oxide for intimate ground to base metal
• Separate screw to attach #14 to #6 AWG ground wires
• High strength bronze casting
• UL and CUL listed

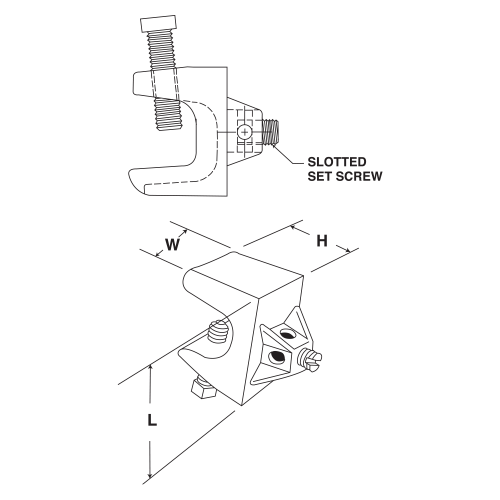

Specifications ground clamp
| Overall Length (In.) | 3.15 |
| Overall Length (mm) | 80 |
| Material | Copper |
| Overall Width (In.) | 2.13 |
| Overall Width (mm) | 54 |
| Overall Height (In.) | 2.5 |
| Overall Height (mm) | 63.5 |
| Maximum Copper Conductor Size (kcmil) | 500 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Standards Met | Meets – IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A). |
| Application | Utility/Ground Grid |
| Product Type | Beam Grounding Clamp |
| Part Features | Universal, fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams.<CRLF>Provide a mounting pad suitable for a two-hole compression lug.<CRLF>Install quickly and easily with a standard 1/4″ key hex wrench tooling. |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
