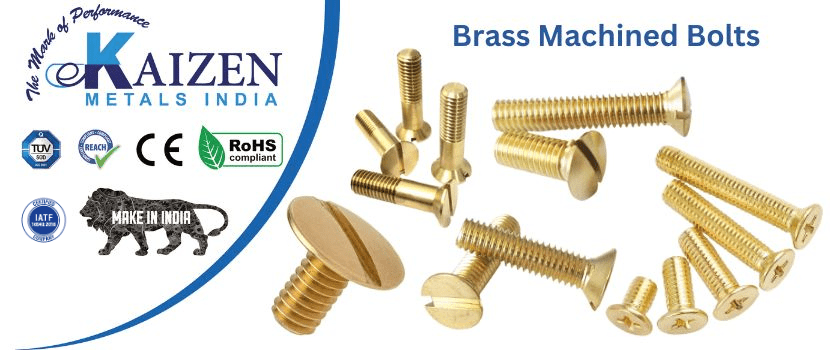

Brass Machined Bolts
Our high quality Brass Machined Bolts are used in various industries. They have square heads and a semi-cone point and typically come with a square nut assembled. They are also typically hot-dip galvanized in order to protect the steel.
Following are the specification for Brass Turned Bolts.
Brass anchor bolts can be used in various applications, including HVAC systems, curtain walls/facades, plumbing/piping systems, electrical installations (such as conduit), construction/building materials (such as drywall), and furniture installation (such as cabinetry).
The tensile strength of brass ranges from 40-85 ksi (thousand pounds per square inch), depending on how much zinc is present in the alloy. In comparison, the tensile strength of stainless steel ranges from 50-90 ksi.
Brass Machined Bolts Description
- Machine Screw, Slotted Fillister Head
- Thread 00-90 2A (0.046”)
- Head Diameter .075″
- Overall Length (OAL) .287″ (7.3mm)
- Threaded Length 1/4″
- Material: Brass #C360
| Bolt Diameter | D | F | C | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
| Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 1⁄2 | 0.515 | 3⁄4 | 0.750 | 0.725 | 1.061 | 0.995 | 21⁄64 | 0.348 | 0.308 |
| 5⁄8 | 0.642 | 15⁄16 | 0.938 | 0.906 | 1.326 | 1.244 | 27⁄64 | 0.444 | 0.400 |
| 3⁄4 | 0.768 | 11⁄8 | 1.125 | 1.088 | 1.591 | 1.494 | 1⁄2 | 0.524 | 0.476 |
| 7⁄8 | 0.895 | 15⁄16 | 1.312 | 1.269 | 1.856 | 1.742 | 19⁄32 | 0.620 | 0.568 |
| 1 | 1.022 | 11⁄2 | 1.500 | 1.450 | 2.121 | 1.991 | 21⁄32 | 0.684 | 0.628 |
| 11⁄8 | 1.149 | 111⁄16 | 1.688 | 1.631 | 2.386 | 2.239 | 3⁄4 | 0.780 | 0.720 |
| 11⁄4 | 1.277 | 17⁄8 | 1.875 | 1.812 | 2.652 | 2.489 | 27⁄32 | 0.876 | 0.812 |
| 13⁄8 | 1.404 | 21⁄16 | 2.062 | 1.994 | 2.917 | 2.738 | 29⁄32 | 0.940 | 0.872 |
| 11⁄2 | 1.531 | 21⁄4 | 2.250 | 2.175 | 3.182 | 2.986 | 1 | 1.036 | 0.964 |
| 13⁄4* | 29⁄16 | 13⁄16 | |||||||
| 2* | 215⁄16 | 15⁄16 | |||||||
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
